Category: Fibre Testing Instruments
Introduction: Main features:1. Adopt mechanical twisting, the twist is easy to control, high stability.2. More accurate measurement data, and good consistency.3. To provide high accuracy spectrum diagram, variance-length curve, the linear density - frequency distri…
Main features:
1. Adopt mechanical twisting, the twist is easy to control, high stability.
2. More accurate measurement data, and good consistency.
3. To provide high accuracy spectrum diagram, variance-length curve, the linear density - frequency distribution.
4. The uneven curve can be saved and playback.
5. Powerful statistical analysis function, providing annual and monthly product quality level analysis graphics
and quality trend chart, scientific management to provide basis for the user.
The main technical indicators:
1. The capacitance detection trough: 4
2. The test range: 10 dtex ~ 1670dtex
3. The test speed: 25, 50, 100, 200, 400, 800 m/min
4. The test time: 10 SEC ~ 20 min continuously adjustable
5. CV %, U% value range: 0.2%- 100%
6. The variance-length curve: cutting length 1.7 cm ~ 1500 m
7. Spectrum diagram: 170 channels, wavelength range 1 cm ~ 2950 m
8. Linear density frequency scattergram: - 100% ~ + 100%, + 100% to + 400%
9. Direction of twist and twist to adjust: S twist, Z twist, 1000 r/min to 30000 r/min continuously adjustable
10. The use of pressure range: 0.4MPa~ 0.6MPa
11. The compressed air flow: 3 m³ / h ~ 10 m³ / h
12. The input power, voltage 220v±10% frequency50Hz±5Hz power consumption≤400VA

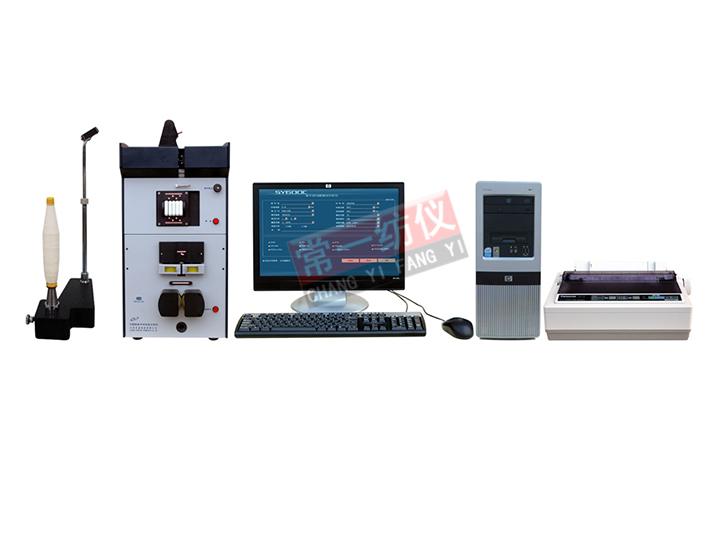

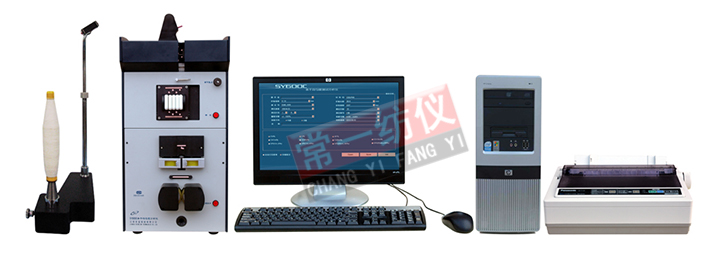

Instrument shape picture
