YG004 electronic single fiber strength tester (pneumatic clamping)

Instrument Usage
It can be widely used in the tensile test of various chemical fibers, wool, cotton and other single fibers.  The breaking strength, breaking elongation, fixed elongation load, fixed conforming elongation, creep and other performance indicators of various fibers.  It can also be used to test certain non-textile fibers under the condition of not exceeding the strength range of this instrument.

Applicable Standards
GB/T14337、GB/T9997、GB/T13835.5
ISO5079、ISO11566
ASTM D3822
BS4029

Main Technical Data
1. Test function: tensile fracture test (program and fixture), constant speed tensile, constant elongation load, constant load load, creep.
The maximum strength range is: 100CN, 200CN, 300CN, 500CN, and 1000CN. Measuring range 2-120%, graduation value: 0.1cN (0.01cN below 50cN), accuracy: ≤±0.5%, load resolution: 1/50000, sensor accuracy: ≤±0.05%FS
Minimum clamping distance: 10MM stepless adjustable, digital setting, automatic positioning.
STRETCHING SPEED: 2-200MM/MIN, INDEXING VALUE: 1MM/MIN, ACCURACY: 1%
RECOVERY SPEED: 2-200MM/MIN, INDEXING VALUE: 1MM/MIN, ACCURACY: 1%
EFFECTIVE STROKE: 100MM/150MM, ELONGATION RESOLUTION: 0.1MM
2. A variety of national standards and unit switching, please choose:
GB, ISO, AATCC, BS, DIN, JIS, etc., N, CN, KG, LB, IN, etc.
3. The above test function is pneumatic clamping
4. Power supply: 220V, 50HZ, 200W
5. Weight: 85KG
6. Dimensions: 370×300×550mm

Configuration Options:
1. Ordinary type: desktop host, large screen Chinese LCD display, with data storage, retrieval, statistics, printing functions, can be independently configured EPSON300K printer, and print out test data reports.
Statistics include: strength, elongation, elongation, breaking time, fracture
work, maximum value, minimum value, average value, CV value, etc.
2. Computer: provide computer operation software, configure computers, color monitors and inkjet printers, display and print out graphics and data reports.
It realizes the two-way interactive control of the key operation (single-chip microcomputer) and computer keyboard operation on the host panel, which can be selected arbitrarily according to needs.
THE COMPUTER USES WINDOWS OPERATING SYSTEM.
The text of the operation interface can be selected in both Chinese and English.
The data statistics include: strength, elongation, elongation, breaking time, breaking work, maximum value, minimum value, average value, CV value, etc

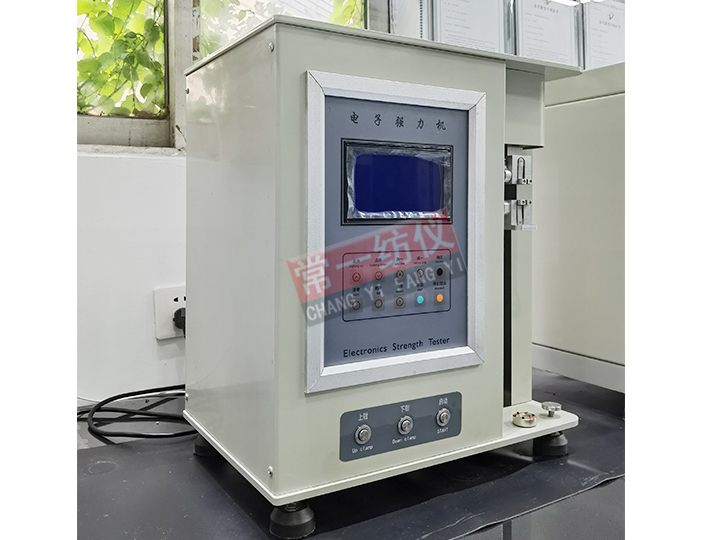

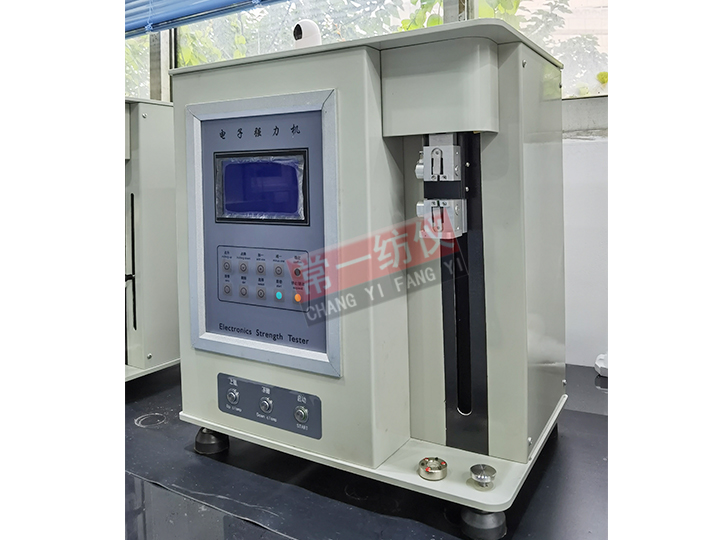

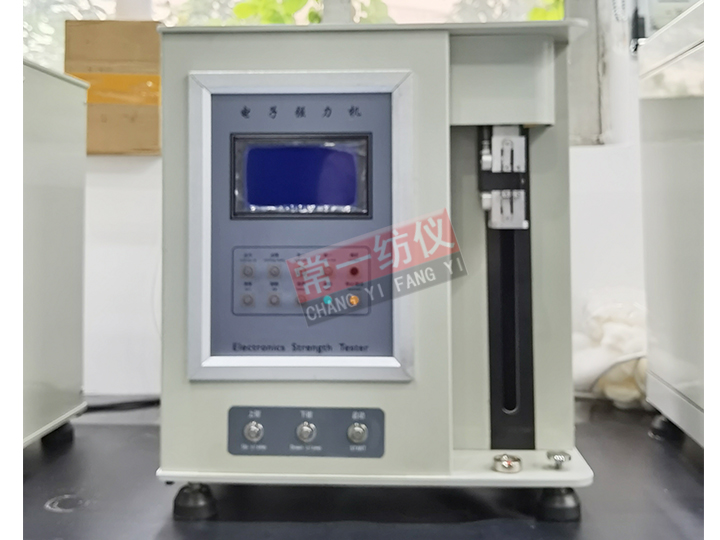

Instrument shape picture
