CYG023E Fully Automatic Single Yarn Strength Tester

Instrument Usage
It is used to automatically measure the breaking strength, breaking elongation, breaking strength, breaking time and tensile curve of single yarn and chemical filament. Equipped with a Lenovo brand computer, it makes the data collection, calculation and output all automatic.

Applicable standards
GB/T3916 “Textiles Rolled Yarns Determination of Breaking Strength and Elongation at Break of Single Yarns”
GB/T14344-2003 “Test Methods for Tensile Properties of Synthetic Fiber Filaments”
ISO2062 “Method for Determination of Breaking Load and Elongation at Breaking Load of Single Yarns”
DIN51221/53834, ASTMD76, D2256.

Main specifications and technical parameters
● Type: Equal elongation type (CRE).
● Strength test range: 0~100N; CNA customized sensor
● Load indication accuracy: ≤±0.5%.
● Clamping distance range: 10~500mm (stepless adjustable, digital setting, automatic positioning),
Accuracy: ±0.01mm.
● Stretch test range: 900mm (when the clamping distance is 500mm, the elongation is 400mm).
● Tension speed: 20~5000mm/min (infinitely variable, arbitrary setting), accuracy: 2%.
● Pre-applied tension range: 0~150cN (automatic).
● Clamping and wire picking method: pneumatic chuck, pressure: 0.4~0.8MPa.
● Fully automatic test tube change: 20 tubes for standard type.
● Maximum number of tests in one batch: 300.
● Data input: Industrial control all-in-one computer controlled by virtual keyboard.
● Touch screen computer operating system: WINDOWS 10.
Data and graphic data output:
(1) Output data include: breaking strength, breaking elongation, breaking elongation, breaking strength, breaking time, breaking work, fixed strength elongation, fixed elongation strength, as well as the maximum value, minimum value, average value and CV value in the data statistics;
(2) Display: the strong force value, elongation, strong force - elongation curve displayed by the color monitor;
(3) Printing: Single value, statistical value, and strength-elongation curve of test data.
● Noise level: 74dB (A)
● Power supply: 220V, 50HZ, 1.2KW.
● Weight: 300KG.
● Overall dimensions: (L×W×H)
(1) Main unit: 1100mm x 630mm x 1770mm (excluding monitor)

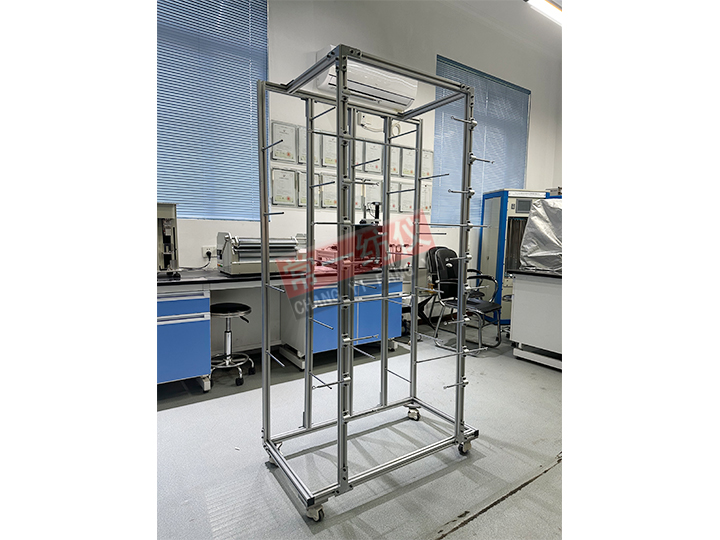

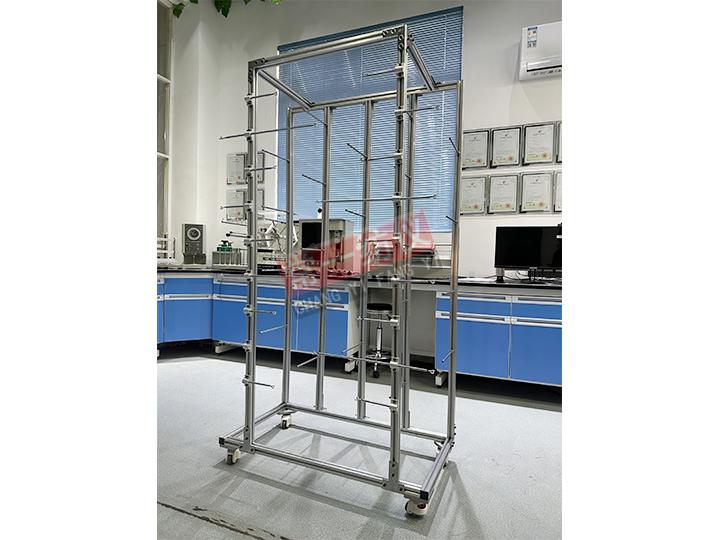

(2) Yarn insertion frame: 1200mm×160mm×500mm
(3) Air compressor: 650mm x 370mm x 500mm (optional)
● Abnormal data automatic rejection function, timed stretch function, data saving and query function.
● Fully automatic analysis, and automatic statistics, analysis, printer to print data and graphs.
● No need to hang pre-tension weights, there is a computer to automatically control the pre-tension.
● Rapid automatic force correction knob, only need to lightly press once can be fully automatic force zero correction.
● Internal circuit design adopts independent function system circuit boards, which reduces the time for repair and maintenance.
● The percentage (%) of breaking stretch can be set according to the needs of different yarns.
● The upper and lower limits of strength and elongation can be set, and the test will be stopped automatically if the limit is exceeded, or the test will be executed according to the set instructions.
● Reference strength and elongation points can be set, and the data will be printed out automatically.
The data after testing can be automatically stored in the hard disk drive for convenient management and application.
The software program adopts a window screen and can be operated with a mouse, which is easy to learn and use.
No special interface is required and it is compatible with general domestic computers, so the use and maintenance costs are low.
Adopts Delta's high-speed motor drive mechanism to enhance testing efficiency.

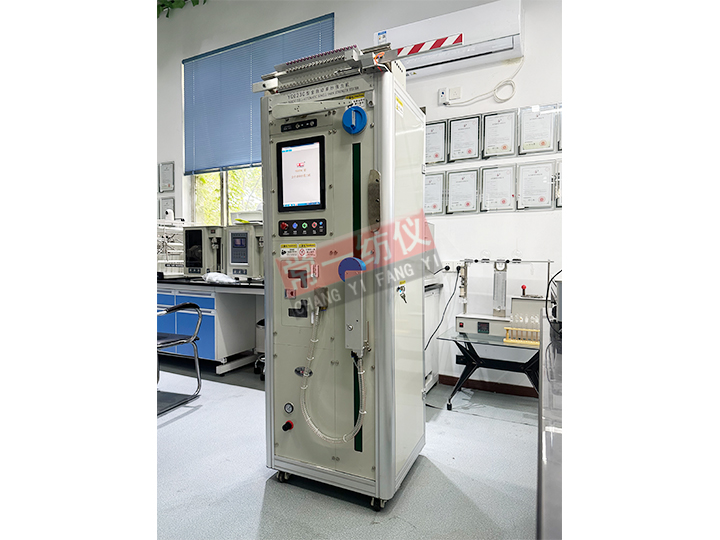

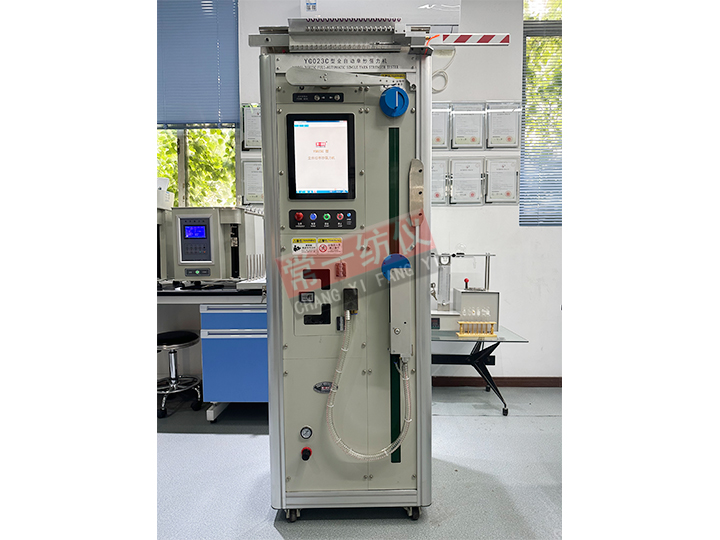

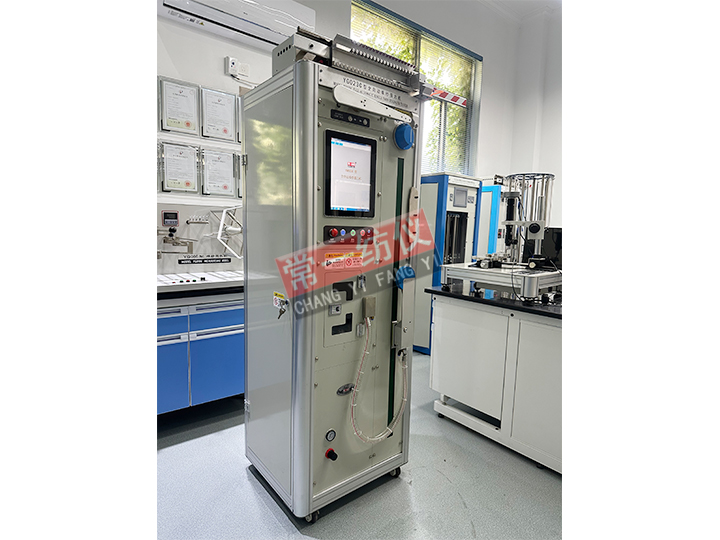

Instrument shape picture
