YG155D Yarn Twist Tester (Touch Screen Version)

Category: Yarn Testing Instruments

Introduction: Instrument Use is used to determine the twist of various yarns and the unevenness of twist.It adopts microcomputer control and touch screen LCD display in English and Chinese.With data storage, retrieval, statistical function.With data report printing…

0086-13906112580
Details Photos
Instrument Use
is used to determine the twist of various yarns and the unevenness of twist.
It adopts microcomputer control and touch screen LCD display in English and Chinese.
With data storage, retrieval, statistical function.
With data report printing function.
Support various printers of different sizes.

Standards
GB/T2543.1、GB/T2543.2、ISO2061-1995、ISO7211-4、BS EN ISO 2061-1996、FZ/T10001、GB/T14345、FZ/T01092、ISO2061、ISO/DISI7202、BS2085、ASTM D1422、ASTM D1423、JISL1095等etc.

Main Technical Data
Range of the suitable yarn:All kinds of yarns
Range of the suitable yarn:1-500tex
Testing Method:
count directly method
One-time untwist-retwist method
Testing Length:25~500mm
Testing Range(twist): 1~9999.9
Rotating Speed:800~1500r/min,Digital settings; LCD interface and acceleration, deceleration adjustment buttons (special requirements can be customized)
Power: AC220V,20W
External Dimensions: L1080×W275×H216mm
N.W.:15Kg

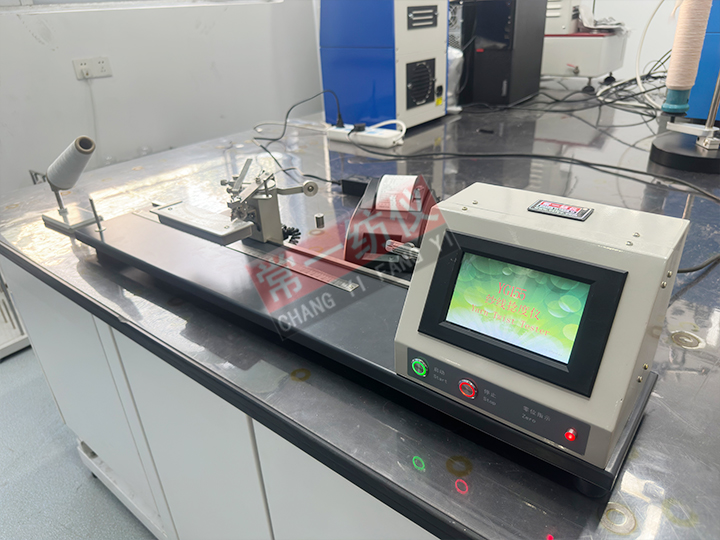

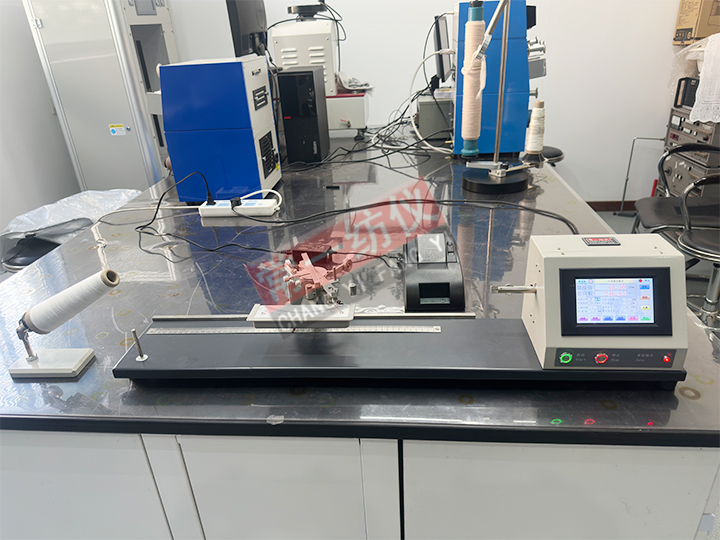

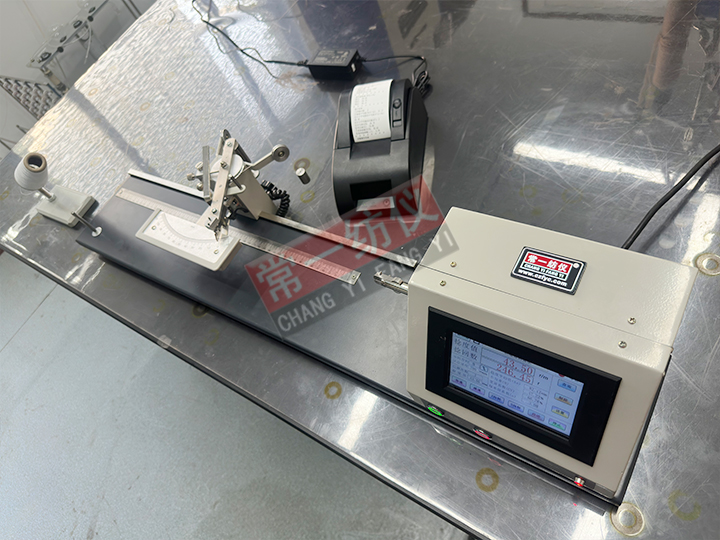

Instrument shape picture
